Medieval Trebuchet,
The Minor Altercation Puppy
(click image to enlarge)

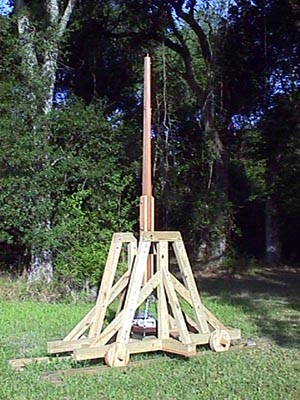

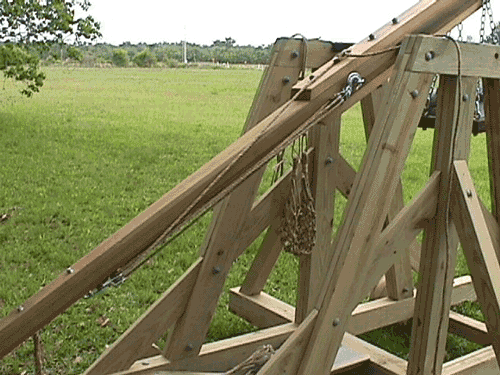

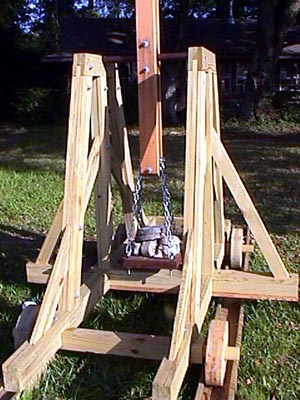

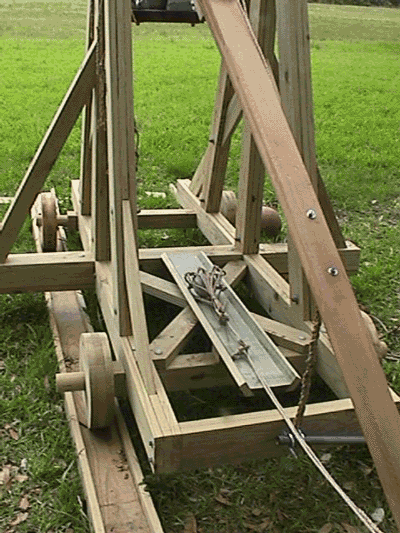

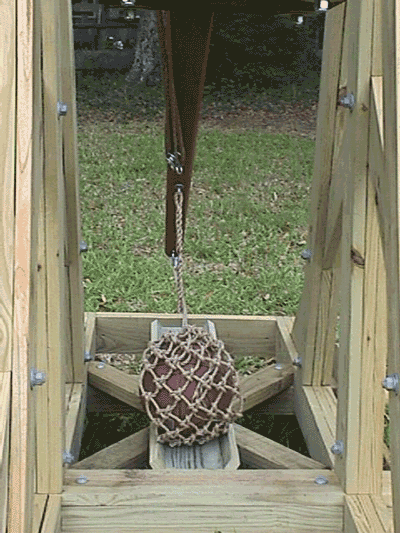

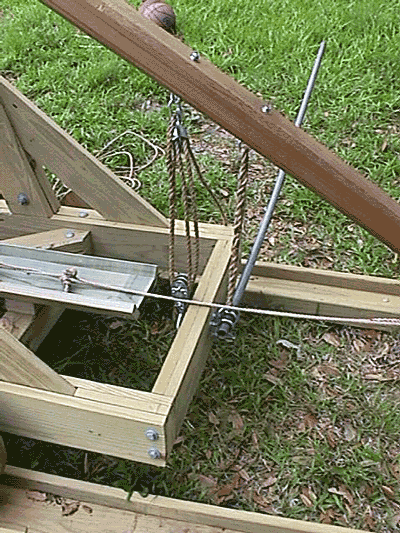

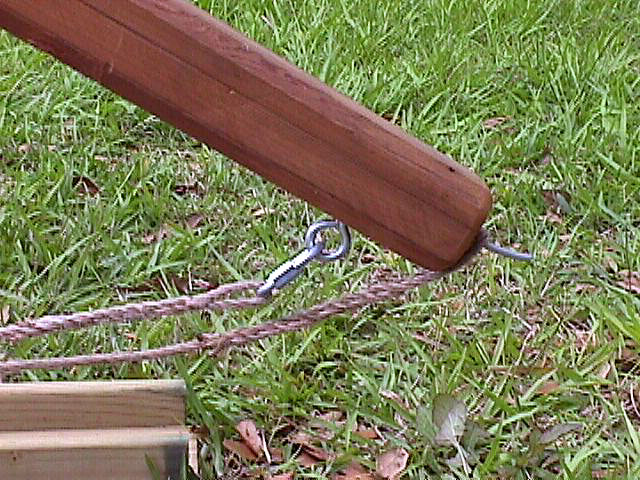

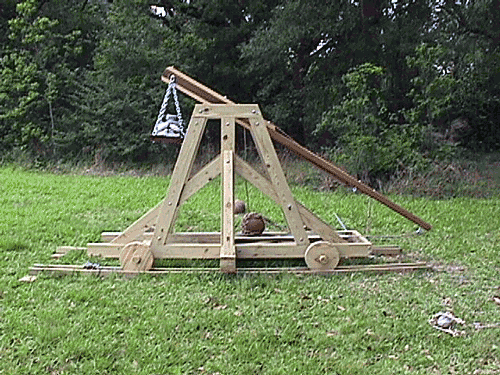

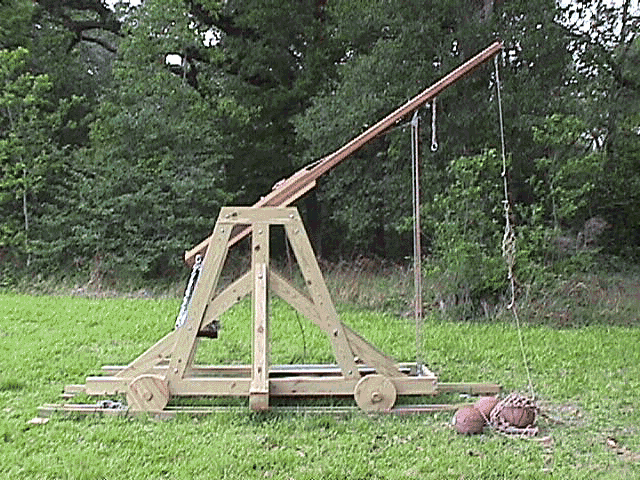

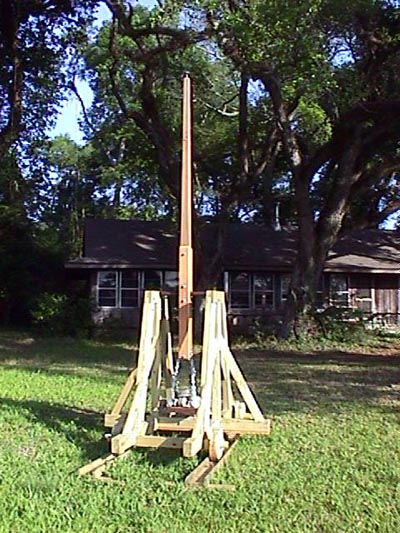

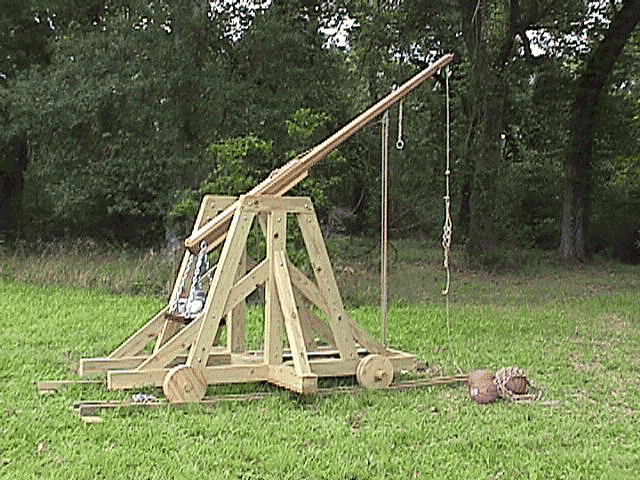

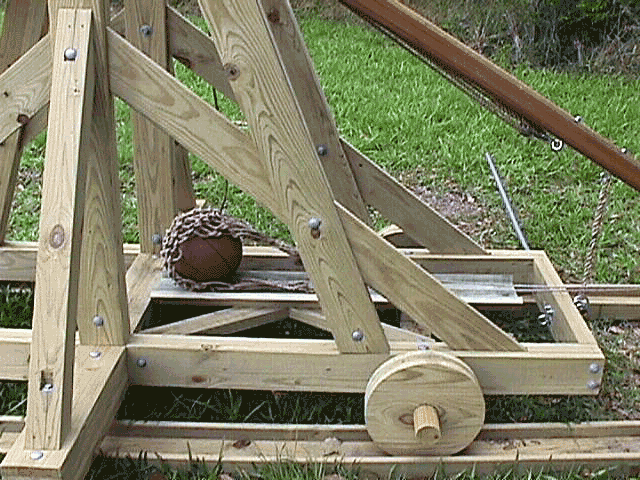

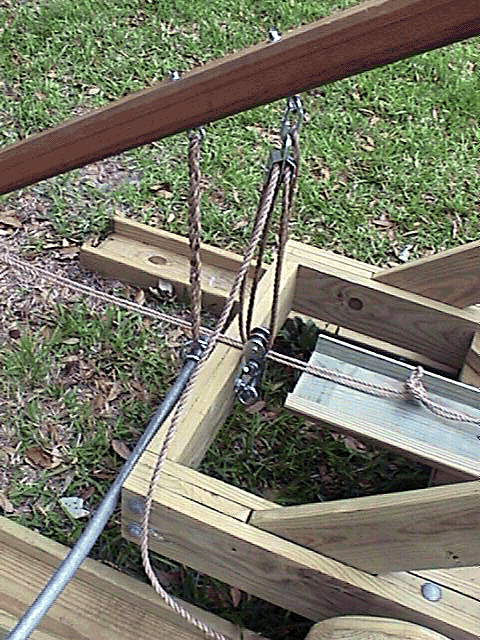

 back-quarter.gif (176533 bytes) front-view-close.gif (111309 bytes)  rear-34.gif (88283 bytes)  rear-view-3.gif (106374 bytes)  side-cocked.gif (108034 bytes) side-ft-angle.gif (167176 bytes)  side-half-cocked.gif (176894 bytes)  trigger-1.gif (120038 bytes)  hook.jpg (115631 bytes)  trigger-2.gif (226308 bytes)


Statistics:
Approximately one-fifth scale.
Arm: ten feet, four inches
Axel pivot: two feet
Height to axel: four feet, two inches
Distance between wheel axels: six feet
Frame constructed of  five-quarter by five inch treated pine.
Arm constructed of three laminated five-quarter by five and one-quarter then shaped.
Axel: one and five-eights steel, twenty four inches in length
Counterweight: plate steel and lead, currently three hundred pounds.

current accomplishments
 softball - ninety-six paces
basketball - sixty-five paces
four tennis balls taped together - eighty-six paces
three, four tennis ball projectiles at once - sixty paces

If you are considering building a Trebuchet, I highly recommend "Ripcords Trebuchet stuff".

http://www.ripcord.ws/
&
Trebuchet For Windows
A trebuchet program written at West Point.
